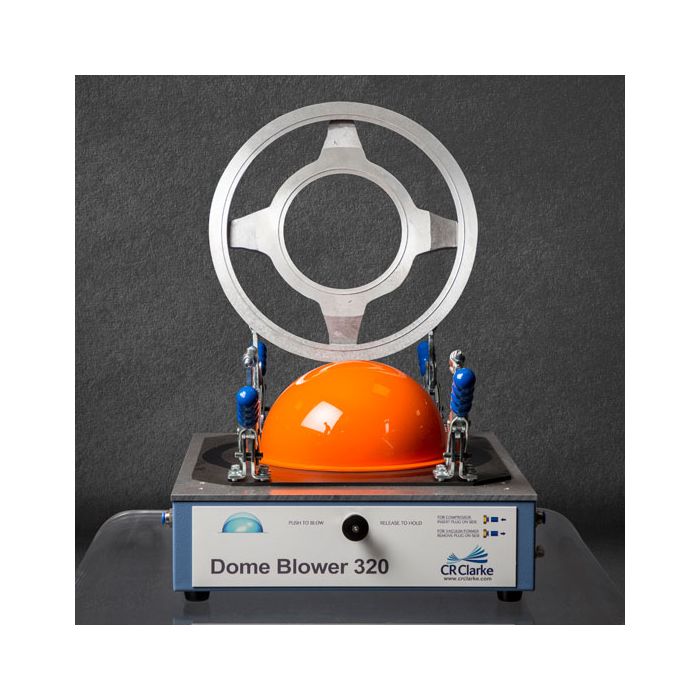

CR Clarke Dome Blowing Unit Model 320

Material is transferred to the Dome Blowing unit where it is clamped under a circular ring. Air pressure is applied which blows the material up. The elastic nature of the material forms it into a uniform, hemispherical dome.

Features:
• 304mm, 225mm & 152mm clamping rings (dome diameters)
• Integral pneumatic valve for blowing process control
• Durable rubber seal plate with air diffuser
• Fully adjustable toggle clamps
• 10mm maximum material thickness
• Dimensions: 399 x 493 x 343mm (W x D x H)
• Weight: 10kg
