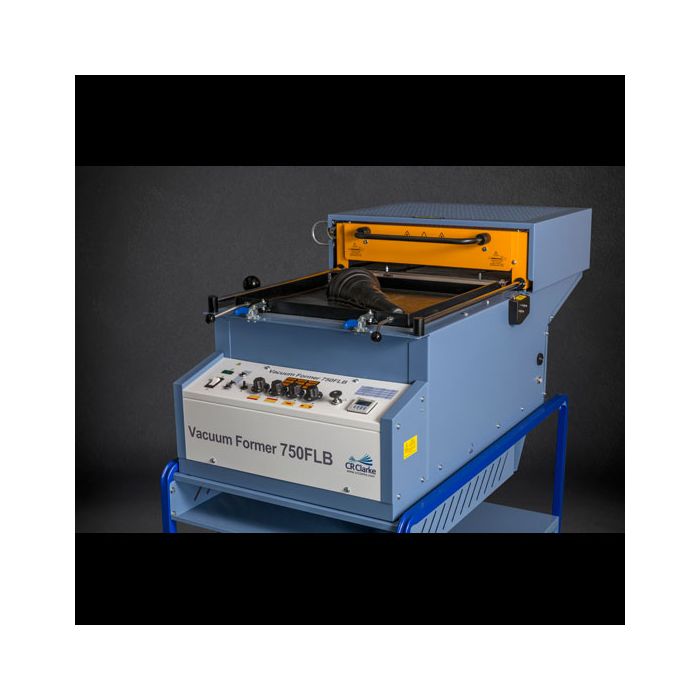

CR Clarke Vacuum Former Model 750FLB

Web Code: MP505
£5,519.00
£6,622.80 Incl. VAT

Delivered direct from manufacturer within 4-6 weeks

A great machine for those who require a larger forming aperture which is 432 x 482mm for this model.

Features include:
• Maximum forming aperture: 432 x 482mm
• Sheet size: 458 x 508mm
• Maximum material thickness: 6mm
• Maximum mould height: 140mm
• 4 zone ceramic heater system with heater mode display
• Heat resistant moulded RTV silicone seals
• Blow release facility
• Digital timer with alarm
• Mechanical interlock prevents moulds damaging heaters
• Reducing plates available
• Stand and castors included but if a bench mount machine is required please specify

Specifications:
• Voltage: 220-240V, 50-60Hz
• Motor: 1ph (230V), 2.65kW
• Heater: 230/115V, 2.65kW
• Maximum current: 11A
• Platen stroke: 152mm
• Vacuum pulling capacity (typical): 635mm Hg (0.83 bar)
• Dimensions: 640 x 760 x 1,350mm (H x W x D)
• Weight: 85kg
• Supplied with a single phase plug as standard. Please call if you'd prefer a three phase option
Web Price £5,519.00
Web Code MP505
Alternative Codes MP505, 314612
Catalogue Page Number 929
Brand CR Clarke
Pack Size Each
GTIN 5028288218059
