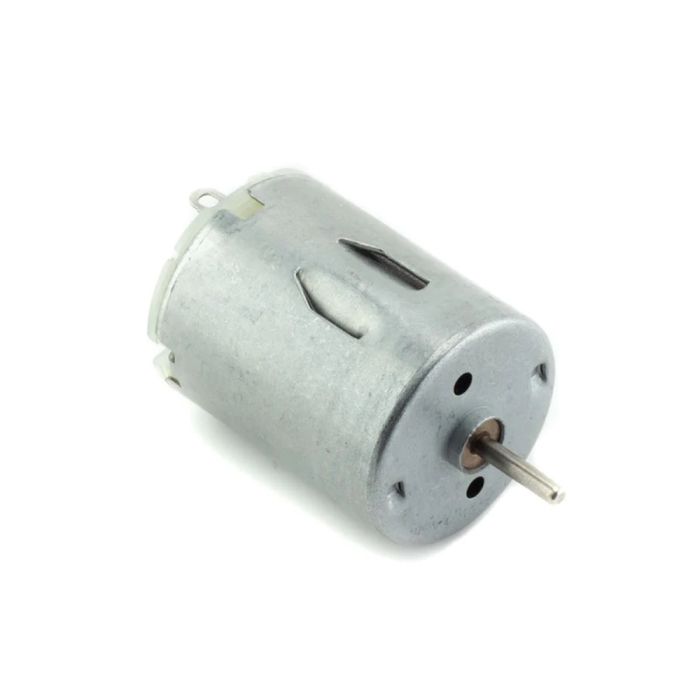

High Torque DC Miniature Motor
Web Code:
EL363
£1.79
£2.15
Incl. VAT
Incl. VAT
Incl. VAT
In Stock
A low-cost miniature motor for a higher stall torque than EL281.
Applications including models, robotics and educational demonstration equipment. Changing the polarity will run the motor in the opposite direction.
Operating voltage: 1.5 to 6.0V dc.
Rated voltage: 3.0Vdc.
No load speed: 9500rpm.
Load current: 1.14A.
Weight: 20g.
Torque: 19.91g/cm.
Shaft diameter: 2mm.
Dimensions: 31 x 24 x 20mm (L x W x D).
Applications including models, robotics and educational demonstration equipment. Changing the polarity will run the motor in the opposite direction.
Operating voltage: 1.5 to 6.0V dc.
Rated voltage: 3.0Vdc.
No load speed: 9500rpm.
Load current: 1.14A.
Weight: 20g.
Torque: 19.91g/cm.
Shaft diameter: 2mm.
Dimensions: 31 x 24 x 20mm (L x W x D).
| Web Price | £1.79 |
|---|---|
| Web Code | EL363 |
| Alternative Codes | EL363, EL361, EL282, 281521 |
| Catalogue Page Number | 811 |
| Pack Size | Each |
This product is classified as an 'article' and therefore by law does not require a safety data sheet under current legislation.
