CR Clarke Vacuum Former Model 1210

Web Code: MP510
£2,239.00
£2,686.80 Incl. VAT

Delivered direct from manufacturer within 4-6 weeks

Compact, reliable and simple to operate making it ideal for schools and model makers. Will form 228 x 305mm sheets (quarter standard sheet size).

Features include:
• Maximum forming aperture: 204 x 280mm
• Sheet size: 228 x 305mm
• Maximum material thickness: 6mm
• Maximum mould height: 100mm
• Ceramic heater system
• Heat resistant moulded RTV silicone seals
• Blow release facility
• Mechanical interlock prevents moulds damaging heaters
• Stand available

Specifications:
• Voltage: 230V, 50-60Hz
• Motor: 1ph (240V), 1.235kW
• Heater: 230/115V, 1.235kW
• Maximum current: 5.9A
• Platen stroke: 115mm
• Vacuum pulling capacity (typical): 635mm Hg (0.83 bar)
• Dimensions: 500 x 840 x 570mm (W x D x H)
• Weight: 36kg
• Supplied with a single phase plug as standard. Please call if you'd prefer a three phase option

*This item is excluded from any promotional discounts.

Web Price £2,239.00
Web Code MP510
Alternative Codes MP510, 311615
Catalogue Page Number 928
Brand CR Clarke
Pack Size Each
GTIN 5028288218080
This product is classified as an 'article' and therefore by law does not require a safety data sheet under current legislation.
You may also like

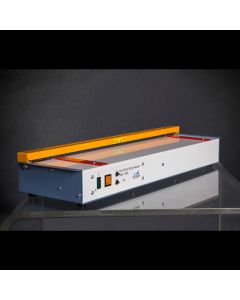

CR Clarke Hot Wire Strip Heaters - Single Wire
